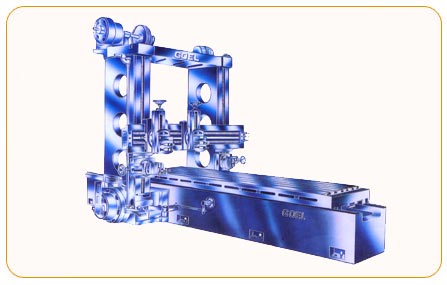

Technical data of "GOEL" Heavy Duty Planners
Particulars
6 Ft.
8 Ft.
10 Ft.
12 Ft.
14 Ft.
16 Ft.
20 Ft.
Length of bed
10'
13'
16'
19'
22'
24'
31'
Length of Table
10'-9"
12'-9"
14'-9"
16'-9"
21'
Stroke of Table
6'
8'
10'
12'
14'
16'
20'
Width of Bed
 21"
25"
25"
35"
35"
35"
35"
Width of Table
26"
32"
32"
42"
42"
42"
42"
Maximum width between uprights
3'
4'
5'
6'
6'
6'
6'
Maximum height under cross rails
4'
4'
6'
6'
6'
6'
Method of Driving Planner
BELT DRIVEN
Method of Driving Table
RACK AND PINION
Motor required to drive
3 H.P.
5 H.P.
H.P.
10 H.P.
15 H.P.
20 H.P.
25 H.P.

CONSTRUCTION OF THE MACHINE :


DESIGN:

It is very double rigid column and body bore system planner fitted with gunmetal Bushes.
THE DRIVE:

The machine is arranged for direct individual as well as two belt drive.
THE BED.

The bed is of deep box section type and is tied together at frequent intervals by double walled bridge pieces extending to the bottom of the Bed.
THE TABLE:

It is of box section type and is streamlined with hand scraped 'V' way to bear heavy load. It is heavily ribbed and the Rack provided in it is accurately machined and milling cut.
THE GEARINGS:

The main bearings for the Gearings are cast solid with the Bed. The Gears Teeth are hobbing machine cut. Except two gears are helical, Gun metal bearings have been provided for all the shaft and loose pulleys. Taper Roller bearings can also be provided instead of Gun metal bushes.
THE CROSS RAIL:
This is of Box section type with large surface. It is suitable for both hand and mechanical drive.
TOOL POSTS:
These are manufactured out of close grain alloy castings and steel to stand heavy cut. These can be driven both manually and mechanically.
THE UPRIGHTS:
The uprights are of ridig Box section type, keyed firmly, bolted on to bed and are cabable of absorbing the heaviest shocks without vibration. Extra pins are provided to re-fit the machine accurately after once it is dismantled.
THE UPRIGHTS
1.Automatic lifting arrangements of cross rail
2.Self drive arrangements (Motorised arrangements)

Planomillers are also manufactured.
