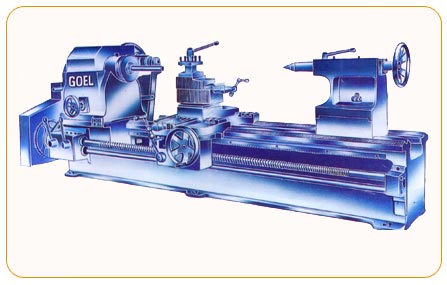

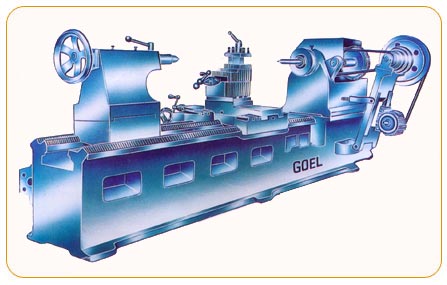

The high working speeds and high power of this Lathe results in an usually wide work range. Rigid compact construction prevents vibration even at top working speeds.

Its spindle is made from selected steel. A heavy duty thrust bearing is fitted at back of the spindle to with stand & absorb the thrust at the spindle's front. Its bearings are adjustable and are of self oiling type. The machine can be supplied with tapper roller bearings if specially asked. The unit is designed to run at different speeds, both speeds Low and very fast.

Its specially designed and strong cross ribs create full confidence in the steady working of the machine under heavy turing, surfacing, screw cutting or sliding cuts. A removable gap piece is fixed with two location pins for perfect alignment.

It is fully compound slide rest indexed to swivel for conical turning. It has large bearing surface with the bed. Slide is furnished with T slots to enable boring and milling etc. Adjustment for wear and tear is made by tapper gibs.

It has a liberal engagement with the Bed, and.is adjustable sideways for taper tuning. The plunger ground one is graduated in inches which helps progressive and safe drillings, And that the plunger is of standard more taper and is self ejecting.

One Face Plate, One Steady Rest, One Follow Rest, One Centre Plate, A set of all machine cut change Wheels and A'pair of morse taper centres.
